Warehouse Stacking Strength Calculator

Enter your stack configuration and distribution environment to get Static Load, Safety Factor, and DCSR — then a suggested ECT grade, computed live from the McKee formula. No manual board-combination lookup required.

1. Stack configuration

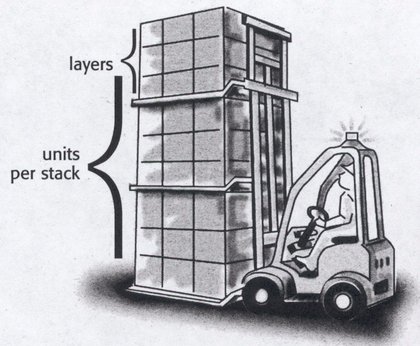

"Units per stack" is how many loaded pallets sit on top of each other in storage — use 1 if pallets are never double-stacked.

Layers per unit and units per stackLayers perunit = 3Units perstack = 2Pallet
Each loaded pallet is one unit. "Layers per unit" is how many box layers sit on it; "units per stack" is how many loaded pallets sit on top of each other in storage.
2. Distribution environment (Safety Factor)

Safety Factor so far: 3.2

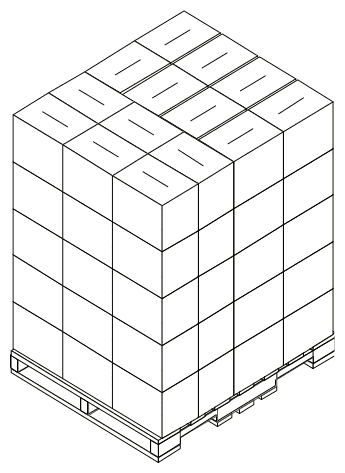

Columnar stacking patternLayer 2Layer 1Same orientation, same position
Columnar — every layer stacks in the same orientation and position, so seams align straight up and down.
Interlocked stacking patternLayer 2 (rotated 90°)Layer 1Alternate layers rotate 90°
Interlocked — alternating layers rotate 90°, so corners overlap and seams never line up the same way twice.

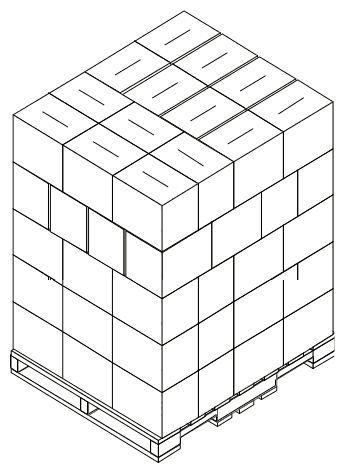

Complex stacking patternTop layer (rotated)Lower layers (columnar)Columnar base, interlocked cap
Complex — lower layers stack columnar for load stability, and the top layer (or two) interlocks for extra stacking strength.
3. Box size and construction

Outside dimensions, used for the box perimeter in the McKee formula. Pick a single-wall flute (A/B/C) or a double-wall combination (B/C or A/C) — the suggested grade checks the standard ECT range for whichever you choose.

4. What do you use today? (optional)

Leave blank if you don't know — the suggested grade still shows without it.

Enter your stack configuration and box size to see results.

Need help specifying this box?

This predicts stacking strength — it doesn’t replace a real compression test or a sourced quote. Send Steve your numbers directly.

Talk to Steve about this spec

How the calculation works

Every figure here traces back to your own inputs and the public McKee formula. Nothing is pulled from a proprietary lookup table — the suggested ECT grade is computed live, the same way each time.

Static Load and Safety Factor, calculated directly

Static Load comes straight from your stack configuration — box weight, layers, units per stack, and pallet weight. Safety Factor is the sum of the eight point values you select for your storage and distribution environment. Multiplying them gives DCSR, the compression strength your box needs.

A required Board Factor, not a guess

DCSR and your box’s perimeter are run through the McKee formula in reverse to produce a required Board Factor — the exact board-dependent number a combination of ECT and caliper would need to hit.

Matched against standard ECT grades, live

That required Board Factor is checked against standard single-wall ECT grades (23 through 32) at your chosen flute’s typical caliper — computed on the spot with the same McKee formula, not pulled from a lookup table. The lowest grade that meets the requirement is the suggestion.

Warehouse stacking calculator questions

What is Static Load?
Static Load is the total weight resting on the bottom box in a stack — every box and its contents above it, plus an allowance for stacked pallets. It does not include any safety margin for fatigue or the distribution environment; that comes from the Safety Factor.
What is the Safety Factor, and why does it use a point system?
The Safety Factor accounts for everything Static Load does not: how much the product itself supports or bulges the box, how long it sits in storage, humidity, how the pallet is stacked and stretch-wrapped, and the pallet’s own foundation. Each factor is scored with points from a standard industry framework, and the points are added together. A higher Safety Factor means a more demanding environment.
What is DCSR?
DCSR (Dynamic Compression Strength Required) is Static Load multiplied by Safety Factor. It is the compression strength — measured the way a box compression tester measures it — that a box needs to meet or exceed to stack safely in the environment you described.
How does this calculator suggest an ECT grade without asking for a board combination?
It uses the McKee formula (BCT = 5.874 × ECT × Caliper^0.508 × Perimeter^0.492), the industry-standard formula for predicting box compression strength, solved backwards: DCSR and your box’s perimeter give a required "Board Factor," which is then checked against standard single-wall ECT grades (23, 26, 29, 32) at your chosen flute’s typical caliper. The calculator reports the lowest standard grade whose predicted compression meets or exceeds your DCSR.
Why does the flute type I pick change the suggested ECT?
The McKee formula depends on caliper (board thickness) as well as ECT — a thicker flute reaches the same predicted compression strength at a lower ECT. C-flute is the default because it is the most common flute for RSC shipping cartons; switch it if you know your box uses A- or B-flute, or a double-wall combination (B/C or A/C) instead.
Does this calculator cover double-wall board?
Yes. Selecting a B/C-flute or A/C-flute combination checks the standard double-wall ECT grades (42, 48, 51, 61, 71, 82) from the National Motor Freight Classification Item 222 / Rule 41 minimum ECT table, instead of the single-wall grades. If even the highest standard grade for the wall type you picked falls short, the calculator says so rather than guessing a number for the next tier up (triple-wall, or a specialty engineered solution) — that’s a real, less common outcome worth sending to Steve directly.
Is ECT the same as Mullen (burst test)?
No — they measure different things. ECT (Edge Crush Test) measures a box’s resistance to edge-on compression, which is what predicts stacking strength. Mullen (burst test) measures resistance to puncture/rupture. Most modern Box Manufacturer’s Certificates use ECT because it correlates with stacking performance; this calculator suggests an ECT grade for that reason and does not convert it to a Mullen number.
Does this replace an actual compression test?
No. McKee is a well-established prediction formula, not a physical measurement. It is a strong starting point for specifying a box, but a real compression test on the actual box, board, and product is the only way to confirm performance for a critical or borderline application.

Stacking strength terms

Static Load (SL)
The total weight resting on the bottom box in a stack, before any safety margin.
Safety Factor (SF)
A point-based multiplier accounting for product support, bulge, storage time, humidity, stacking pattern, overhang, pallet foundation, and stretch wrap.
DCSR
Dynamic Compression Strength Required — Static Load × Safety Factor. The compression strength a box needs to stack safely.
ECT
Edge Crush Test — a measurement of a board’s resistance to edge-on compression, in pounds per lineal inch. The standard basis for stacking-strength certification today.
Mullen (burst test)
An older certification measuring a board’s resistance to puncture/rupture. Related to ECT but not directly convertible — they test different failure modes.
McKee formula
The industry-standard formula for predicting box compression strength from ECT, board caliper, and box perimeter: BCT = 5.874 × ECT × Caliper^0.508 × Perimeter^0.492.
Board Factor
The board-dependent portion of the McKee formula (5.874 × ECT × Caliper^0.508), isolated from box size so it can be compared directly to a requirement.
Caliper
The thickness of the combined board, in inches. Varies by flute type — this calculator uses a typical nominal caliper for the flute you select.
Flute
The corrugated wave shape between the liners. A-flute is thickest, B-flute thinnest of the common types, C-flute is the most common for shipping cartons.
Double-wall (B/C, A/C flute)
Two flute layers combined into one board, used when a single wall can’t reach the required strength. B/C is the most common double-wall combination; A/C is thicker and heavier-duty.

What this tool does not tell you

This calculator predicts required and expected compression strength using the McKee formula — a well-established industry prediction, not a substitute for an actual box compression test on your product and box.

The Safety Factor point values are a standard industry framework applied as entered. They rely on an honest read of your storage and distribution environment; this tool does not verify or estimate those conditions.

The ECT suggestion checks standard grades for the wall type you choose — 23 through 55 ECT for single-wall (A/B/C flute), 42 through 82 ECT for double-wall (B/C or A/C flute) — using one typical nominal caliper per flute, not a specific supplier’s exact combined-board caliper, which varies by mill, combination, and combined board weight. In practice a heavier real-world board of the same flute usually runs a bit thicker than the value used here, so this calculator leans conservative rather than optimistic. If your required Board Factor exceeds what the highest standard grade for your chosen wall type can deliver, it says so rather than guessing a number for the next construction tier up.

ECT and Mullen (burst test) are not mathematically interchangeable. This tool suggests an ECT grade only.
